PVC-C Reducing Tee DN15*20-600*500 GB Standard

PVC-C Reducing Tee DN15*20-600*500 GB Standard

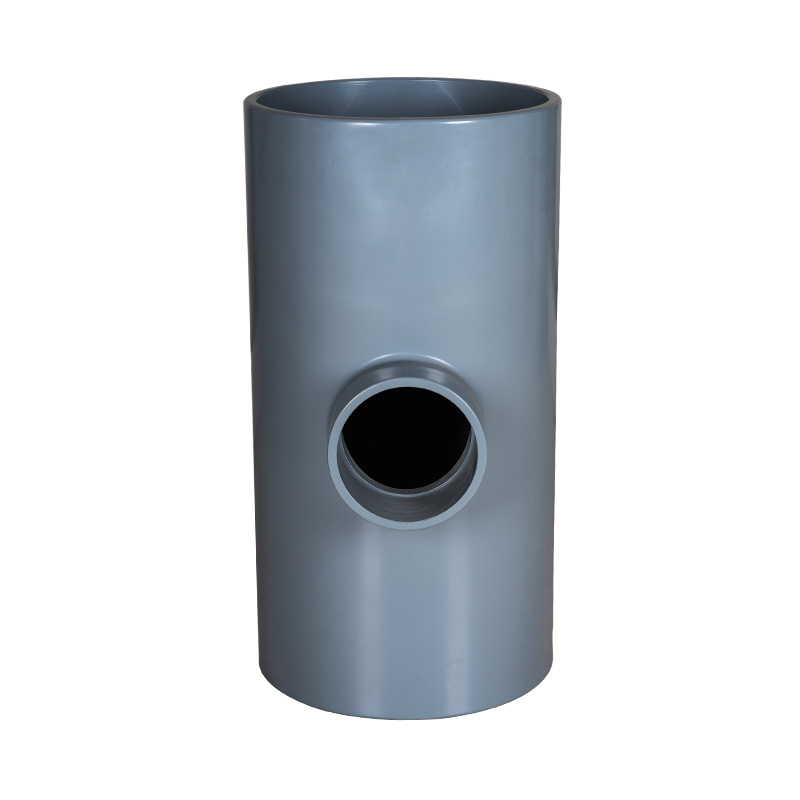

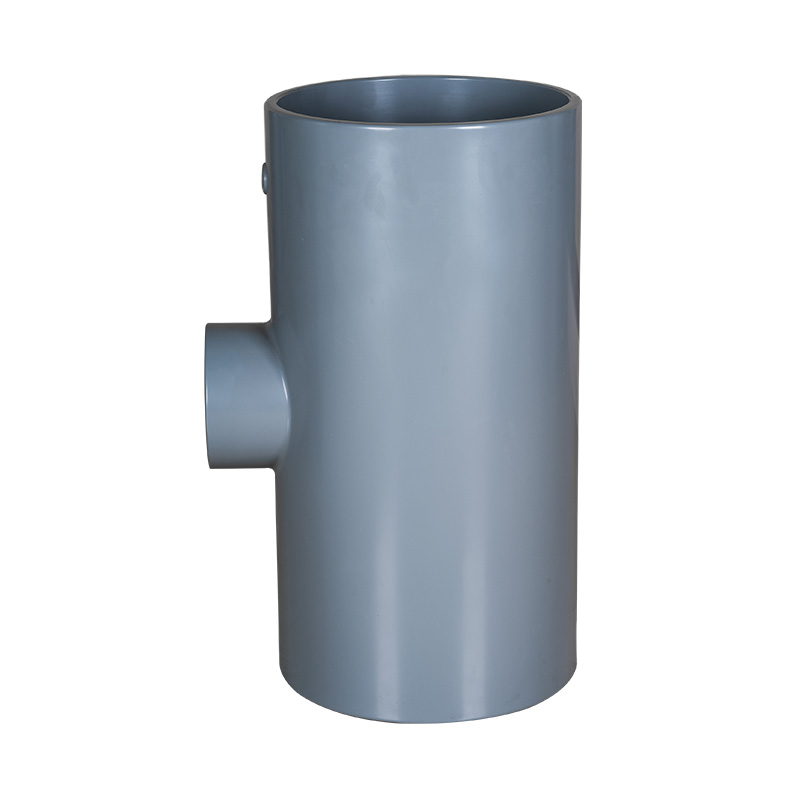

High quality light gray PVC-C Reducing Tee Female Socket Plastic Pipe Fittings for Chemical and Water Applications
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: Female, Socket
Shape: Reducing
Head Code: Round
Color: Light Gray
Application: Industrial and Chemical
Material: PVC-C
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

Contact Us
PREV：PVC-C Cross DN15-200 GB Standard
NEXT：PVC-C Tee DN15-600 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

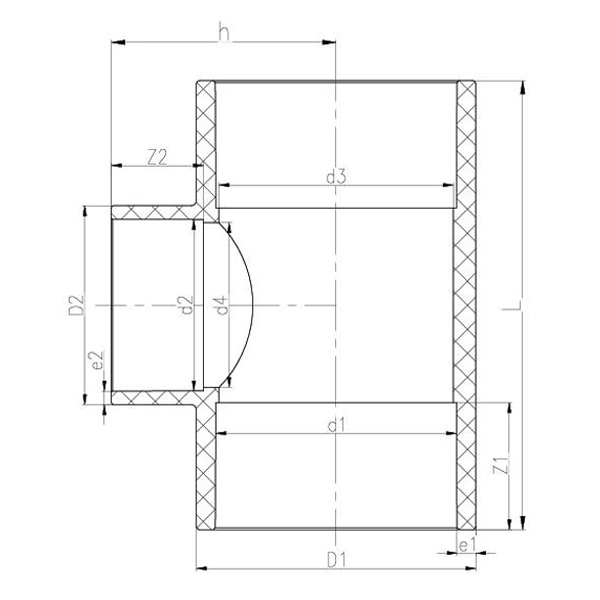

Dimension List

DN D1 D2 d1 d2 d3 d4 L h Z1 Z2 e1 e2
20*15 31.5  26  25  20  20  16  65.5  29.5  19  19  3.2  3
25*15 41  27  32  20  27  16  80.5  33.5  22  19  4.5  3.5
25*20 41  31.5  32  25  27  20  80.5  36.5  22  19  4.5  3.2
32*15 50.5  26  40  20  34  16  96.5  37.25  26  16.5  5.2  3
32*20 50.5  31.5  40  25  34  20  96.5  40.25  26  19  5.2  3.2
32*25 50.5  41  40  32  34  27  96.5  43.65  26  22  5.2  4.5
40*15 63.5  27  50  20  44  16  116  42.85  31  16  6.7  3.5
40*20 63.5  33  50  25  44  20  116  45.75  31  19  6.7  4
40*25 63.5  43  50  32  44  27  116  48.65  31  22  6.7  5.5
40*32 63.5  51  50  40  44  34  116  52.45  31  26  6.7  5.3
50*20 79  33  63  25  55  20  143  52  38  19  8  3.8
50*25 79  41  63  32  55  27  143  55.3  38  22  8  4.5
50*32 79  50.5  63  40  55  34  143  60  38  26  8  5.3
50*40 79  63.5  63  50  55  44  143  63.5  38  31  8  6.6
65*25 94.5  41  75  32  69  27  168  70.5  44  22  9.7  4.5
65*32 94.5  50.5  75  40  69  34  168  64  44  26  9.7  5.2
65*40 94.5  63  75  50  69  44  168  70  44  31  9.7  6.5
65*50 94.5  79.5  75  63  69  55  168  79  44  38  9.7  8.2
80*20 114  42.5  90  25  87  20  197  68.5  50.5  18.5  12  8.7
80*25 114  42.5  90  32  87  27  197  68.5  50.5  22  12  5.2
80*32 114  52  90  40  87  34  197  73.5  50.5  26  12  5.8
80*40 114  63.5  90  50  87  44  197  78.5  50.5  31  12  6.7
80*50 114  80  90  63  87  55  197  83  50.5  38  12  8.4
80*65 114  95  90  75  87  69  197  92  50.5  44  12  10
100*25 134  41  110  32  106  27  237  77  61  22.5  12  4.4
100*32 134  50  110  40  106  34  237  85  61  26  12  5
100*40 134  63  110  50  106  44  237  89  61  31  12  6.5
100*50 134  79  110  63  106  55  237  89  61  37.5  12  8
100*65 134  94.5  110  75  106  69  237  100  61  44  12  9.7
100*80 134  113.5  110  90  106  87  237  107  61  51  12  11.7
125*50 163  113  140  63  135  55  297.5  132.5  77  37.5  11.5  8
125*80 163  113  140  90  135  87  297.5  132.5  77  50.5  11.5  11.5
125*100 163  134  140  110  135  106  297.5  138.5  77  60.5  11.5  12
150*50 185.5  79.5  160  63  156  55  337  117.5  85.5  38  12.7  8.2
