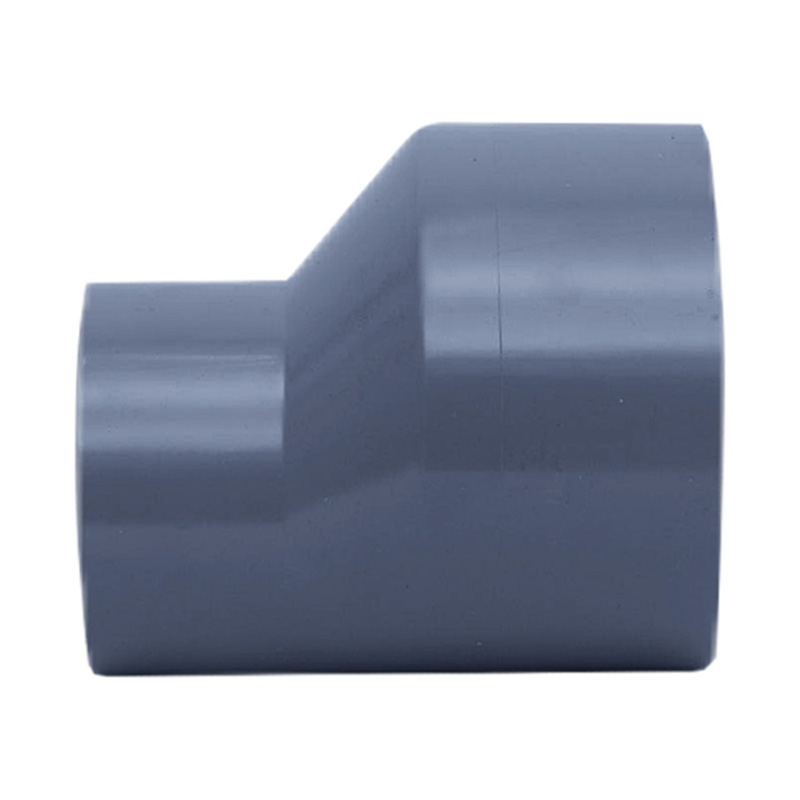

PVC-C Eccentric Reducer DN50*25-DN150*100 GB Standard

PVC-C PVC pipe reducer DN50*25-DN150*100 industrial plastic reducer fittings for chemical and water supply
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Material: PVC-C
Color: Light Gray
Shape: Equal
Head Code: Round
Sizes: DN50*25-DN150*100
Application: Industry
Packing: Carton Box
Working Pressure: 1.6Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

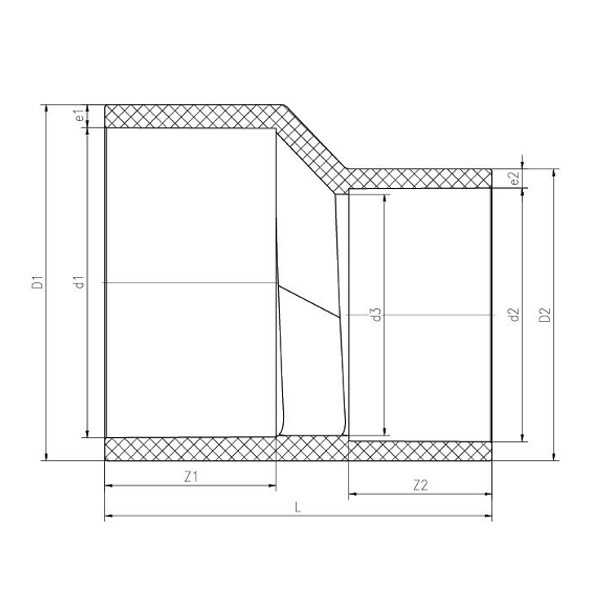

Dimension List

DN D1 D2 d1 d2 d3 L Z1 Z2 e1 e2
50*25 75  40  63  32  27  92  38  22
50*40 75  61  63  50  46  87  38  31  5.5
80*40 104  61  90  50  46  122  51  31  5.5
80*50 104  75  90  63  60  117  51  38
100*50 127  75  110  63  57  150  61  38  8.5
100*80 127  104  110  90  86  138  61  51  8.5
150*80 184  104  160  90  79  213  86  51  12
150*100 184  127  160  110  102  202  86  61  12  8.5
