Composite Cross GB Standard

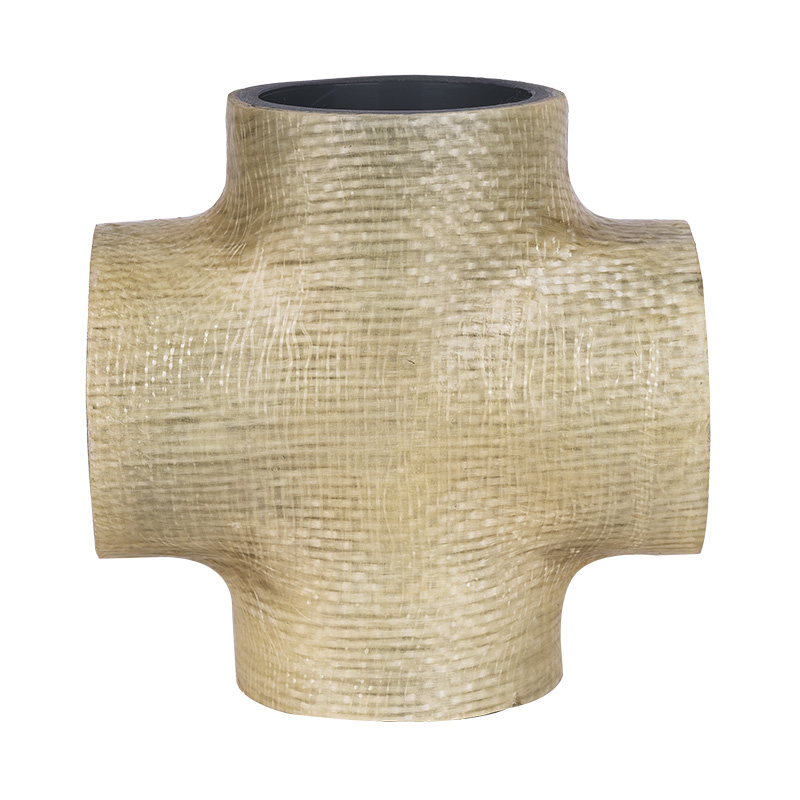

FRP/PVC-C, FRP/PVC-U Fiberglass Reinforced Plastic Coated Cross

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight and High-Strength
The relative density is between 1.5 and 2.0, only 1/4 to 1/5 that of carbon steel, yet its tensile strength approaches or even exceeds that of carbon steel, and its specific strength is comparable to that of high-grade alloy steel.
2. Excellent Corrosion Resistance
FRP is an excellent corrosion-resistant material, offering excellent resistance to air, water, moderate concentrations of acids, alkalis, salts, and various oils and solvents.
3. Excellent Electrical Properties
FRP is an excellent insulating material used in insulators. It maintains good dielectric properties even at high frequencies and has excellent microwave transmittance.
4. Excellent Thermal Properties
FRP has low thermal conductivity and is The thermal conductivity is 1.25-1.67 kJ/s, only 1/100-1/1000 of that of metal, making it an excellent thermal insulation material.
5. Excellent Designability
Flexible design of various structural products to meet specific application requirements, ensuring excellent product integrity and enabling the selection of materials to meet product performance requirements.
6. Excellent Manufacturability
Flexible molding technology can be selected based on product shape, technical requirements, application, and quantity. The process is simple, allows for one-step molding, and offers excellent economic benefits. This is particularly advantageous for complex, challenging, and low-volume products, highlighting its superior processability.

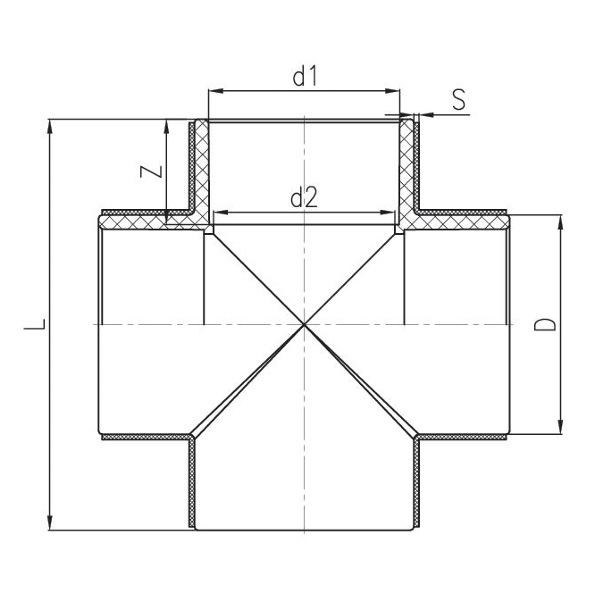

Composite Cross

DN D d1 d2 L Z S
0.6MPa 1.0MPa 1.6MPa
15  27  20  16  56  16  2.5
20  32  25  21  66  19  2.5
25  40  32  26  80  22  2.5
32  50  40  33  98  26  2.5
40  61  50  47  120  31  2.5
50  75  63  59  148  38
65  88  75  71  169  44
80  104  90  86  198  51  2.5  3.5
100  127  110  105  238  61
125  161  140  135  298  76  2.5  5.5
150  184  160  154  338  86  2.5  5.5
200  249  225  219  480    119  3.5
250  308  280  270  592    146  5.5  8.5
300  346  315  304  666    164  4.5  6.5  10
350  390  355  340  748    184  7.5  11.5
400  440  400  384  840    206  5.5  8.5  13

Note: The dimensions of composite pipe fittings may be subject to minor adjustments by mutual agreement between the supplier and purchaser.
