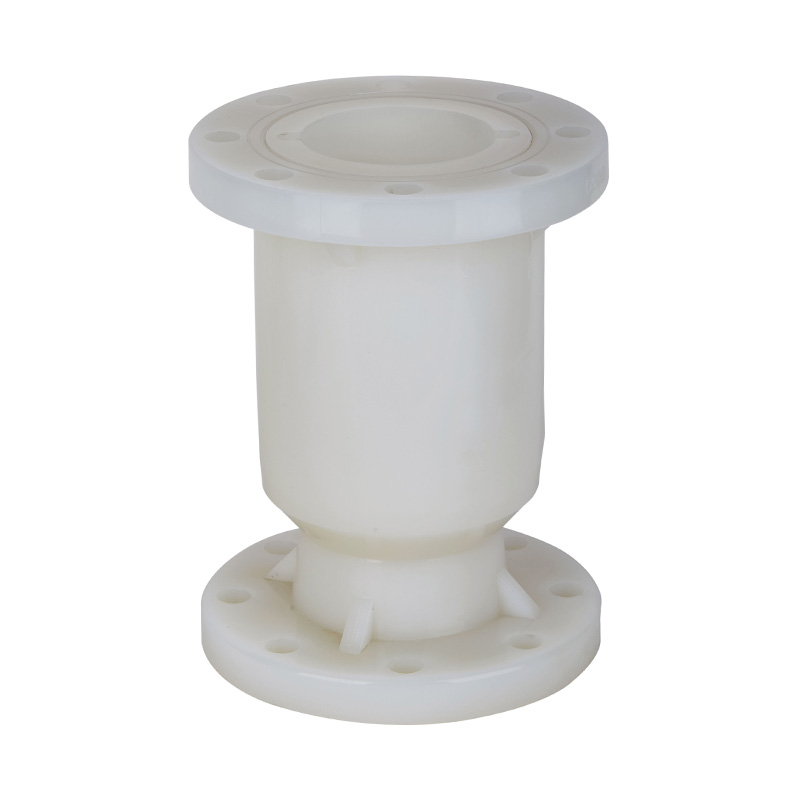

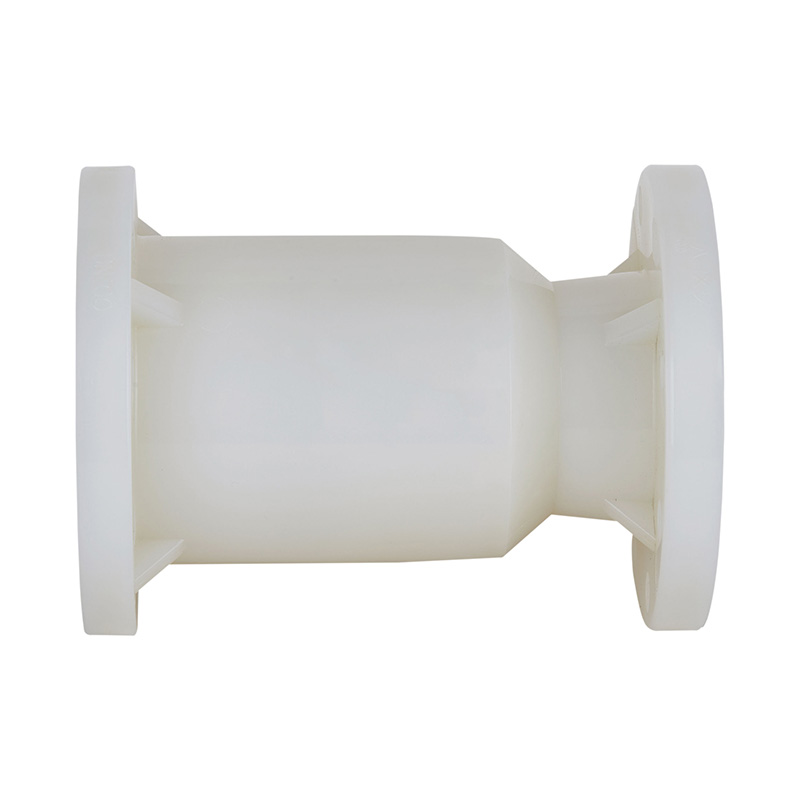

PVDF H41F-10F Vertical Check Valve DN15-300 GB Standard

White PVDF Ball Check Valve Professional Custom Made Professional Custom Made Long Life Plastic PVDF Hydraulic Vertical Check Valve For Water Treatment Industry
Place of Origin: China
Brand Name: KXPV
Model Number: H41F-10F
Application: General
Material: Plastic
Color: White
Temperature of Media: Medium Temperature, Normal Temperature
Pressure: Medium Pressure
Power: Manual
Media: Acid
Port Size: DN15-DN300
Structure: Check
Product name: Vertical check valve
Connection: Flange Ends
Medium: Acid
Pressure Class: 1.0Mpa(10bar)
Operation: Hand Wheel
Body material: Plastic
Delivery Time: 7 Days

Product Structural Features

1. Corrosion Resistance
The entire valve is made of a new plastic. It offers strong corrosion resistance to various acidic and alkaline media.

2. High Flow Rate
The valve's rational structural design reduces resistance throughout the pipeline, allowing the media to flow smoothly, minimizing pressure loss and ensuring a high flow rate.

3. Non-Return Performance
The simple structure makes it less susceptible to other factors, resulting in excellent non-return performance.

4. Small and Lightweight
The valve's compact overall shape makes it suitable for installation in confined spaces.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

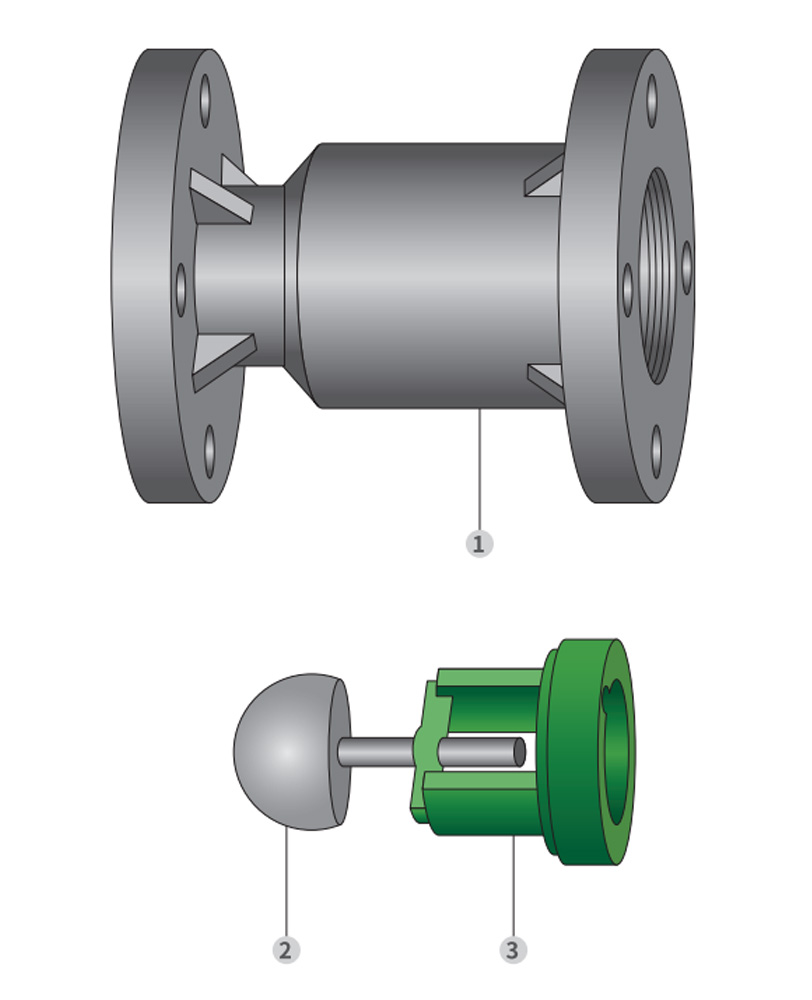

Part Material Table
No. Name Material
1 Body FRPP,PVDF,PVC-C,PVC-U,PPH
2 Ball Core FRPP,PVDF,PVC-C,PVC-U,PPH
3 Seal stent FRPP,PVDF,PVC-C,PVC-U,PPH



Ball Check Valve Assembly Detail Drawing

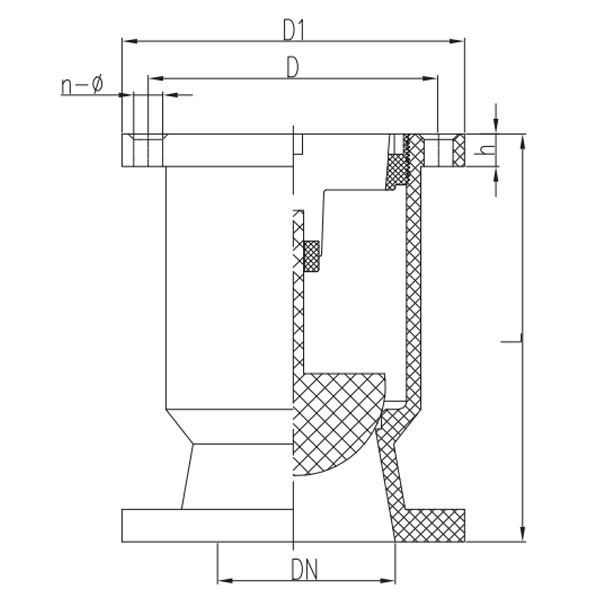

Dimension List



DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
15(1/2") 105  65  70  120  15  4-Φ14 4-Φ15
20(3/4") 105  75  75  120  16  4-Φ14 4-Φ15
25(1") 115  85  90  130  16  4-Φ14 4-Φ19
32(11/4") 135  100  100  145  18  4-Φ18 4-Φ19
40(11/2") 145  110  168  20  4-Φ18
50(2") 160  125  180  20  4-Φ18
65(21/2") 180  145  225  22  4-Φ18
80(3") 195  160  255  25  8-Φ18
100(4") 215  180  190.5  280  25  8-Φ18 8-Φ18
125(5") 245  210  210  215.9  350  30  8-Φ18 8-Φ23 8-Φ22
150(6") 280  240  240  241.3  400  30  8-Φ22 8-Φ23 8-22
200(8") 335  295  290  298.5  400  35  8-P22 12-p23 8-Φ22
250(10") 390  350  355  362  450  38  12-Φ22 12-Φ25 12-Φ26
300(12") 445  400  400  450  38  12-Φ22 16-Φ25
