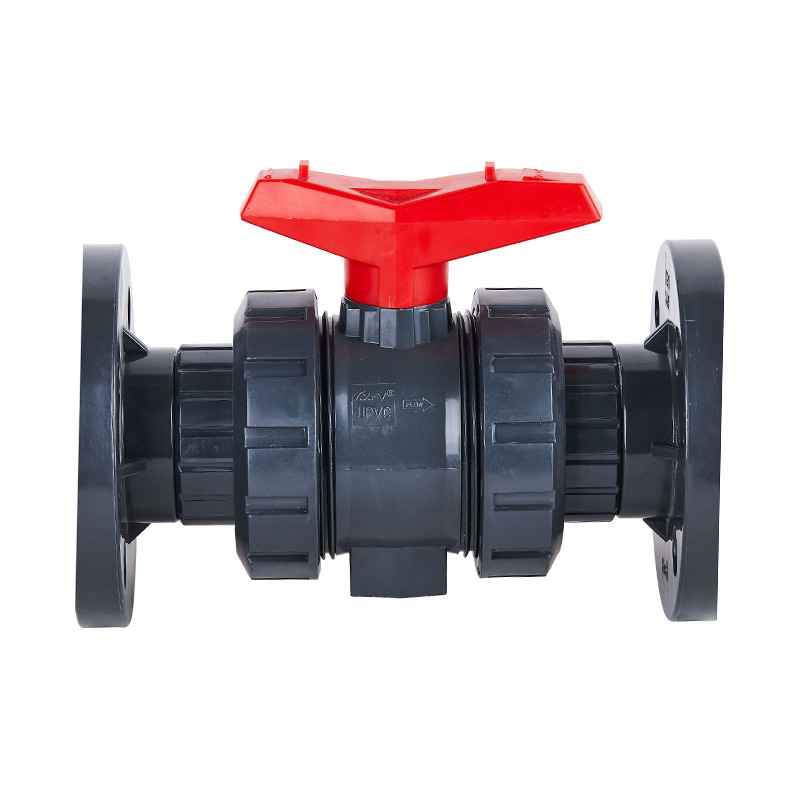

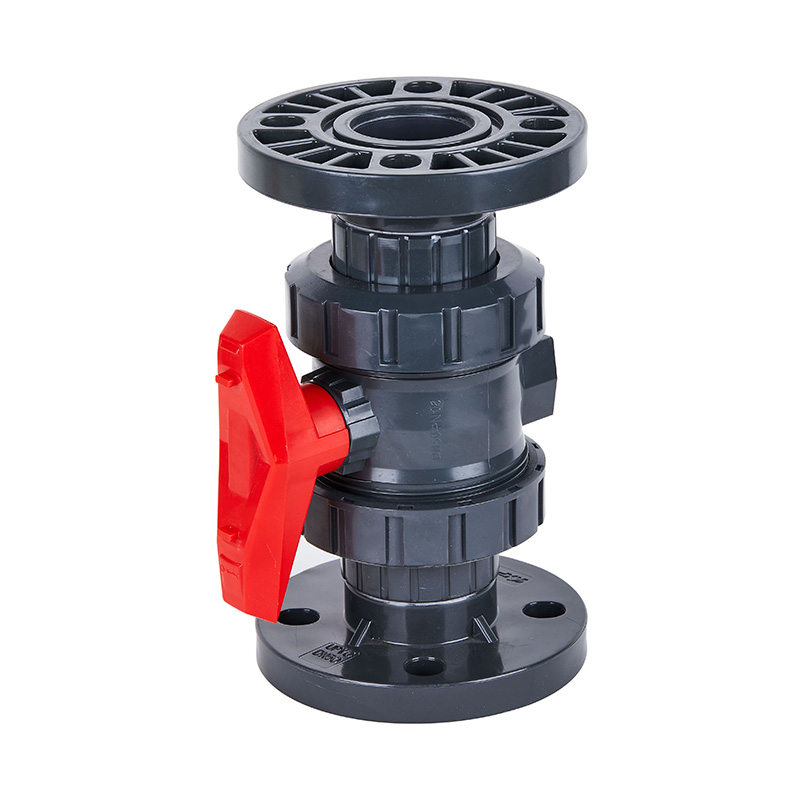

PVC-U Q41F-10U Flanged Double Union Ball Valve DN15-100 GB Standard

Competitive Price Ultra-Durable New Dark Grey PVC-U Flanged Double Socket Ball Valve and PE Pipe for Chemical and Water Industry
Model Number: Q41F-10U
Material: PVC-U
Color: Dark Gray
Connection Type: Flanged
Drive Mode: Manual
Channel: Straight-Through
Structure: Fixed Ball Valve
Function: Bypass Valve
Temperature Resistance: High Temperature
Application: Industrial Use, Water Industry Use
Trademark: KXPV
Size Range: DN15–DN100
Origin: Zhejiang, Ningbo

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1. The PTFE seat of double-union ball valve can be adjusted tightly.
2. Double O-rings provide double leak protection.
3. Exquisite appearance, smooth surface, fine processing, full flow design.

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
