PVC-C 90° Elbow DN15-600 GB Standard

High quality light gray PVC-C 90° Elbow shaped DN15-DN600 1.0-1.6 MPa working pressure plastic pipe fittings for the chemical and water industries
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Right-angle
Material: PVC-C
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN600
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

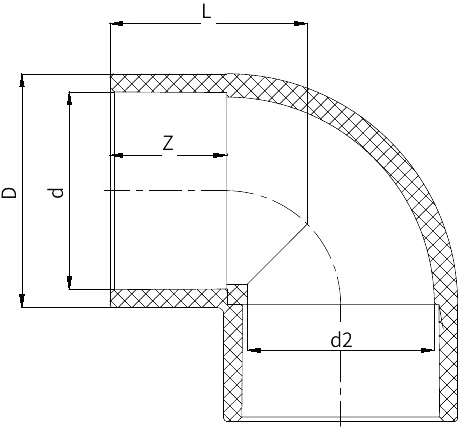

Dimension List

DN D d1 d2 L Z e
15 27 20 18 28 16 3.5
20 32 25 23 34 18.5 3.5
25 40 32 30 41 22 4
32 50 40 38 49 26 5
40 61 50 47 61 31 5.5
50 75 63 60 74 37.5 6
65 88 75 72 83 44 6.5
80 104 90 86 99 51 7
100 127 110 105 120 61 8.5
125 161 140 134 150 76 10.5
150 184 160 154 172 86 12
200 249 225 219 237 119 12
250 310 280 270 301 146 15
300 346 315 310 331 164 15.5
350 392 355 350 372 184 18.5
400 442 400 395 416 206 21
450 494 450 430 483 231 22
500 548 500 480 521 256 24
600 670 630 600 654 321 20
700 758 710 666 951 361 22.5
